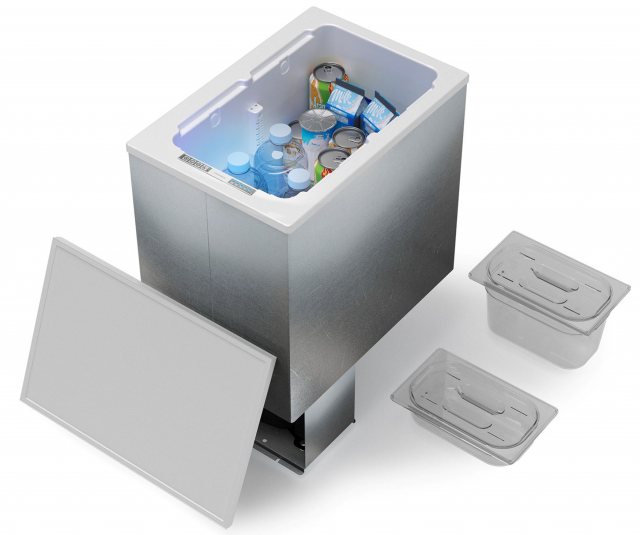

Vitrifrigo TL43 Top Loading Fridge

Vitrifrigo TL43 Top Loading Fridge

Item: 30501

MPN: TL43

Vitrifrigo TL43 Top Loading Fridge

pdf Data Sheet

available Available

Log in to view prices

Product Description

Vitrifrigo 40 litre top opening 12v (or 24V) DC fridge or freezer (+10 to -10 degrees C). Packed with features and super power efficient, ideal to run from solar power with typical consumption in UK summer time a very modest 0.4A/h.

Developed specifically for narrower depth work surfaces in campervans. The TL43 is the perfect top opening fridge for all over the wheel arch on small and mid sized campervan models like the VWT4, VWT5, VWT6, Ford Transit, Renault Traffic, Fiat Diablo and many more.

Key Features:

    • Very power efficient using aluminium finned condenser makes it ideal for running on Solar power – minimum size solar panel 40W.
    • Digital thermostat with temperature control from +10°C to -10°C.
    • Turbo mode for fast chill to achieve temperature set point quicker.

Night mode for minimum noise level and reduced power consumption.

    • Internal LED light.
    • Smart storage for large and small bottles with FDA approved food storage containers.
    • Installation is straight forward with inside out fixings for the fridge and concealed fixings for the lid mount directly to the underside of the work top.
    • Removable lid seal.

External drain

  • The compressor is mounted at one end below the fridge allowing you to position the firdge over the wheel arch to optimise space.
  • Height excluding compressor is 450 mm and positioned 200 mm from edge.
  • Also has the option to be supplied as a cabinet with a 1.5 m pipe set connecting to a remote mount compressor with quick couplings (all pre-charged with refriergant for self assembly).
  • Hard wearing food safe polypropelene interior with hidden cooling pipes behind.

Direct replacement for

  • Indel Webasto BL41
  • Dometic Coolmatic CB40

Weight : 14.5 kg

Dimensions : 500 x 450 x 340 mm (Width, Height, Depth) Height with compressor: 620 mm

Volume : 41 litres

Consumption in Watts (with compressor running) : 31 W

Voltage Options : 12/24V DC (upgradeable to 12/24 & 110-240V AC)

Average 12 Volt Consumption (over 24 hours in UK summertime) : 0.4 A/h
