PV Logic Slimedge PV Panel Kit 150 Watt & 200 Watt
Please select option to view code
PV Logic Slimedge PV Panel Kit 150 Watt & 200 Watt
Available
Log in to view prices
Product Description
Power for Every Adventure
The SlimEdge MHD kit includes everything you need to install the panel and connect to your leisure battery. We stock two sizes 150W and 200W, these SlimEdge solar panels fulfil a variety of energy needs ranging from a continuous trickle feed of power, to prevent battery drain in caravans, motorhomes and boats to creating energy self-sufficiency for off-grid travel.
Rigid SlimEdge solar panels are perfect for use on a motorhome, caravan or campervan roofs as well as many other off-grid power applications. They feature superior shingled monocrystalline solar cells to deliver greater efficiency. This is built into a lightweight frame with discreet inbuilt fixing brackets, providing a total weight of up to 50% less than conventional rigid panels.
The sturdy anodized aluminium frame complements the solar cells to create an aesthetically pleasing panel. These panels carry a 10-year panel warranty and feature inbuilt bypass diodes to minimise the effect of shadows. The rigid SlimEdge panels are fitted with cable as standard – 3m.
INSTALLATION:
The panel can be installed on a flat surface, leisure vehicle roof or boat deck using the in-built brackets. Full installation instructions can be found in the user manual.
Power |
Size |
Weight |
Watts per |
Amp hours |
Charge |
Vmp (VDC) |
Imp (A) |
Voc(V) |
Isc(A) |
|
150W |
1135x805x12mm |
5.0 |
900 |
38.8 |
15A |
23.2V |
6.47A |
27.1 |
6.79 |
|
200W |
1513x805x12mm |
6.0 |
1200 |
39.96 |
20A |
32.5V |
6.16A |
28.5 |
6.46 |
Key
- Vmp - Nominal voltage
- Imp - Nominal current
- Isc - Short circuit current
- Watts and Amp hours/day based on six hours of average daily peak sunlight hours.

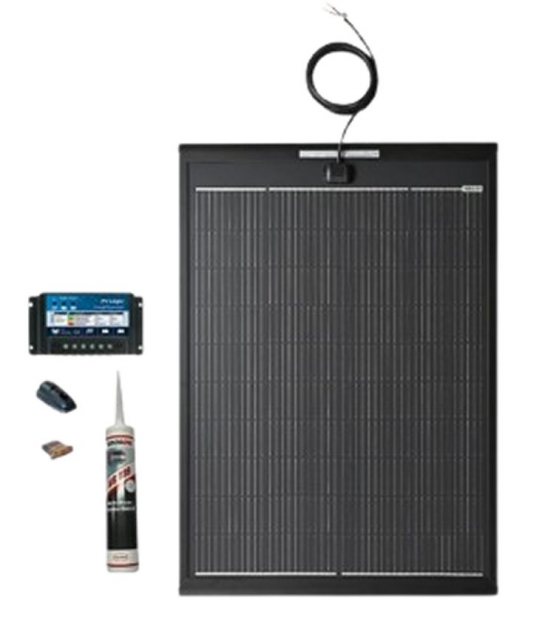

Kit Contents
1 x 200W SlimEdge panel with integrated aero brackets
1 x 20A charge controller
1 x scanstrut cable feed gland
1 x tube elastic adhesive
1 x user manual
Warranty
10-year panel warranty
