Karrt Winch
Item: 30820
MPN: WK45012SB
4500 lbs (20kN) 12v Electric Winch Synthetic Rope
Available
Log in to view prices
Tweet
Product Description
4500 lbs (20kN) 12v Electric Winch Synthetic Rope

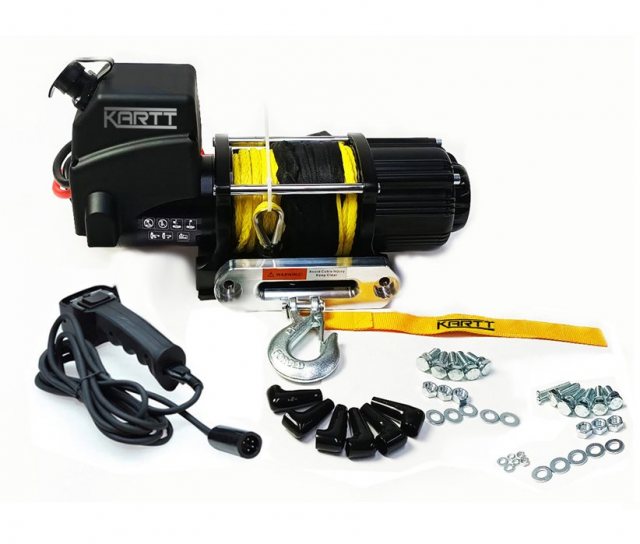

Includes:-
Winch
Roller fairlead
Wire cable with hook
Wired/wireless hand held remote control
Hand held switch
Max pulling force: 2041 kg
Supply voltage: 12 V
Gearing: 3-stage planetary
Gear ratio: 266:1
Clutch lever: manual
Brake: automatic 100% Load Holding
Rope: wire 5.5mm x 15.2m
Remote: wired & wireless
Installed weight: 11.34 kg
Gross/Shipping weight: 12.24 kg
Certificate: CE
ROPE SPEED | POWER CONSUMPTION IN A
Line Pull 0 kg 7.35 m/min, 26A
Line Pull 2041 kg 1.65 m/min, 238A
Bolt Hole Mounting Centres 76 mm x 168 mm
Outer Case Dimensions 445 x 265 x 285 mm
Custom Delivery Required
Delivery price on application.
