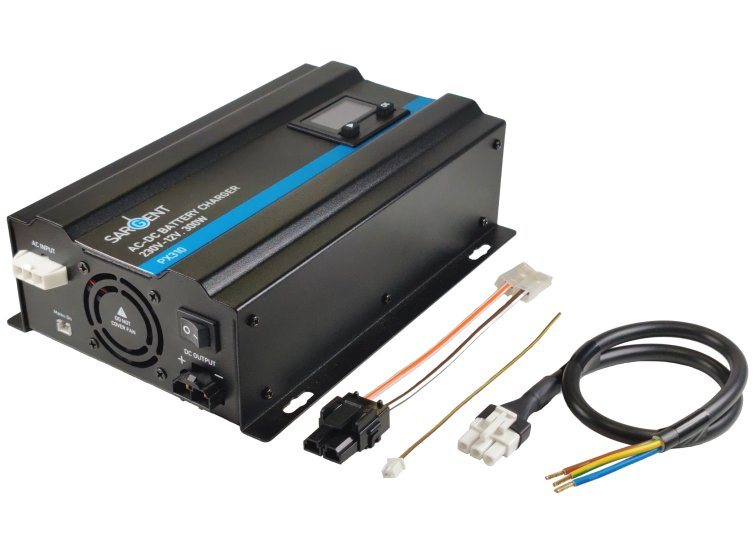

Sargent PX310 Charger Kit

New
Sargent PX310 Charger Kit

Item: 30291

MPN: PX310 Kit

Sargent PX310 Charger Kt

pdf Datasheet

available Available

Log in to view prices

Product Description

Px310 multi-stage battery charger is designed for leisure vehicle applications, providing power for both battery charging and 12 volt appliances.  The integrated LCD display shows battery charging status and allows setup for different battery chemistries.  A PSU mode allows the charger to be used without a battery fitted and the Silent mode avoids noise during overnight charging.

Features include:-

  • Multi-Stage charging - 3-Stage profile maximises charge into the leisure battery
  • High capacity output - up to 20Amps for charging batteries from 70 to 220Ah
  • Integrated LCD Display - for charger setup and display of battery charging status
  • PSU Mode - Charger works as a power supply when no battery is fitted
  • Quiet operation - from intelligent fan cooling with Silent Mode
  • Lithium Wakeup Mode - Charger can wake a sleeping lithium battery
  • Fully protected- built-in overload, short circuit & over temperature protection.

Specification

PX310-KIT

Power

300W

Input Voltage

200-240VAC

Charging Current (max)

20A @14.5V

Boost Voltage

14.7V (max)

Float Voltage

13.8V (max)

Compatible batteries

Flooded, Gel, AGM, Lithium

Battery size

70 - 220Ah

Cooling method

Intelligent fan with Silent Mode

Dimensions (LxWxH)

221x157x67mm

Weight

1.55kg
