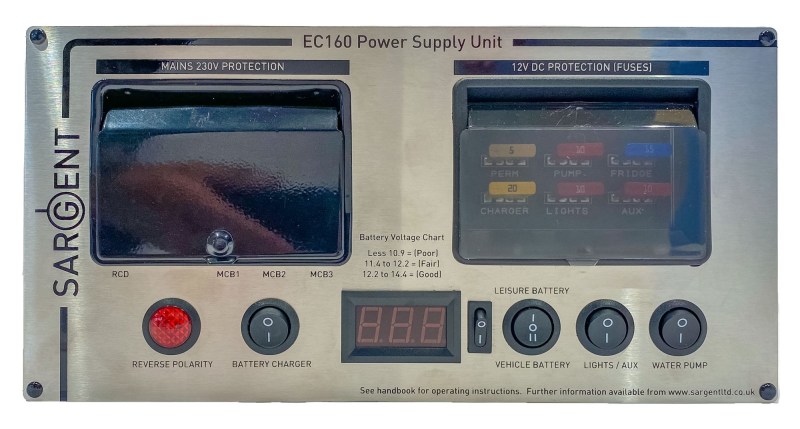

Sargent EC160 Power Management Systems : Silver

These all-in-one units provide all the essential features of a leisure vehicle power distribution and control system. The EC160 power supply unit (PSU), provides connectivity for all mains and 12 volt accessories such as heating, lighting and water systems.  Integrated controls provide switches for the main services and also a display for battery condition.

Also available in Black see part 30202 : Horizontal or 30203 : Vertical

Features include:-

• All-in-one solution - simple fit with all 12 volt, mains and control functions in one box
• Integrated battery charger - up to 14.5Amps for charging Leisure or Vehicle battery
• Screw terminal connections - allows flexible wiring options for low volume installations
• Built-in switches - for control of battery, lighting & pump circuits
• LED display - for indicating battery voltage
• Fully protected - built-in RCD, MCB and 12V fused protection

Colour :                        Silver

Input Voltage :              AC: 230V AC @ 0-16A
                                     DC: 12V DC @ 0-15A

Input Protection :          AC: 1 x RCD

Output Protection :       AC: 3 x MCBs
                                     DC : 6 x Blade Fuses
Mains Charger :            200W @ 14.5A/13.8V (max)
Ingress Rateing:           IP31
Compatible batteries:   Flooded, AGM *
Battery Size:                 60 – 155 Ah
Cooling Method:           Passive
Operating Temp:           0-35
Dimensions:-

Horizontal : 300 x 150 x 205 mm (W x H x D)
Vertical     : 150 x 300 x 205 mm (W x H x D)

Cut-Out    : 285 x 132 mm

Weight:                            2.2 kg
