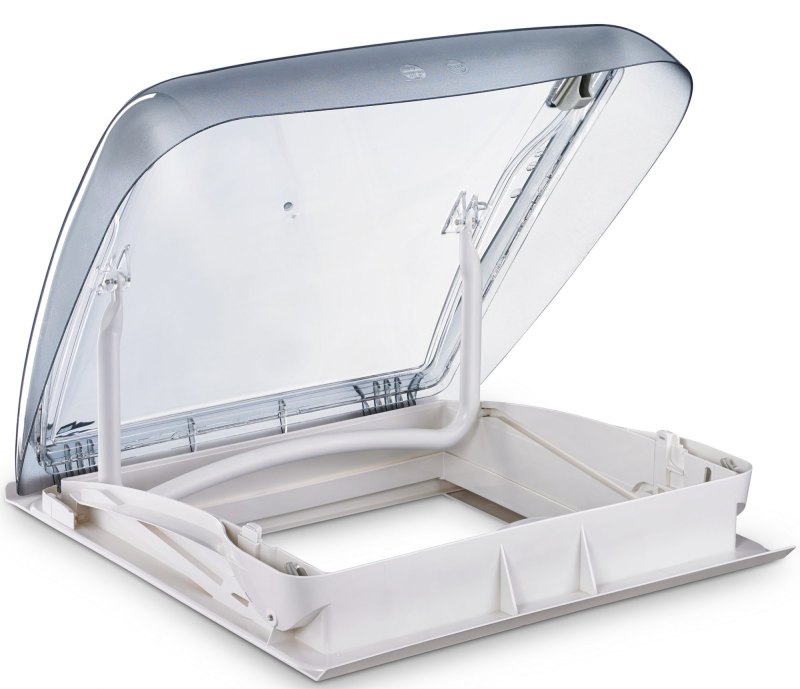

Dometic Mini Heki Style Roof Vent (400 x 400 mm)
Please select option to view code
Dometic Mini HEKI Style Roof Vent with or without forced ventilation
Installation Diagram
Available
Log in to view prices
Product Description
This handle-operated, double acrylic glazed Mini Heki Style roof light for campervans, motorhomes, caravans and horseboxes fits neatly into a standard 400 x 400 mm aperture. An inner frame holds a darkening blind and fly screen (separately adjustable) for shade, privacy and freedom from insects! Operated by a hand-lever, the dome can be opened to three different positions: fully open, half-open and bad-weather position.
The Mini Heki Style is suitable for roof thicknesses from 25 - 42 or 43 - 60 mm and is available with forced ventilation.
Features Include:
- Opens to three positions: fully open, half-open and bad-weather position
- Dome with double acrylic glazing
- Special shaped glass dome is aerodynamic
- Handle-operated
- With or without forced ventilation
- 400 x 400 mm
Roof window with forced ventilation, roof thickness 25–42 mm
Dimensions:
Dimensions product depth : 520 mm
Dimensions product width : 535 mm
Dimensions ordered width : 400 mm
Dimensions ordered height : 400 mm
Net weight : 3.30 kg
Dimensions opening width : 380 mm
Dimensions opening height : 370 mm
Standard mount. material thickness 1 min 25 mm
Standard mount. material thickness 1 max 42 mm
Possible material thickness 1 min 25 mm
Possible material thickness 1 max 42 mm
Ventilation opening 70 cm2
Cut out height : 400 mm
Cut out width : 400 mm
Additional:
Opening angle max 50.00 °
Positions fixed 3
Certificates eMark
Roof window with or without forced ventilation, roof thickness 43–60 mm
Dimensions:
Dimensions Product Depth : 520 mm
Dimensions product width : 535 mm
Dimensions ordered width : 400 mm
Dimensions ordered height : 400 mm
Net weight : 3.30 kg
Dimensions opening width : 384 mm
Dimensions opening height : 364 mm
Standard mount. material thickness 1 min 43 mm
Standard mount. material thickness 1 max 60 mm
Possible material thickness 1 min 43 mm
Possible material thickness 1 max 60 mm
Ventilation opening 70 cm2
Cut out height : 400 mm
Cut out width : 400 mm
Additional:
Opening angle max 50.00 °
Positions fixed 3
Certificates eMark
