MPK Vision Star M Pro 2 LED with Ventilation - Model 49PL (400 x 400 mm)

MPK Vision Star M Pro 2 LED with Ventilation - Model 49PL (400 x 400 mm)

Please select option to view code

MPN: 4903PW4903PLW150MSB

MPK Vision Star M Pro 2 LED with Ventilation - Model 49PL (400 x 400 mm)

available Available

Log in to view prices

Product Description

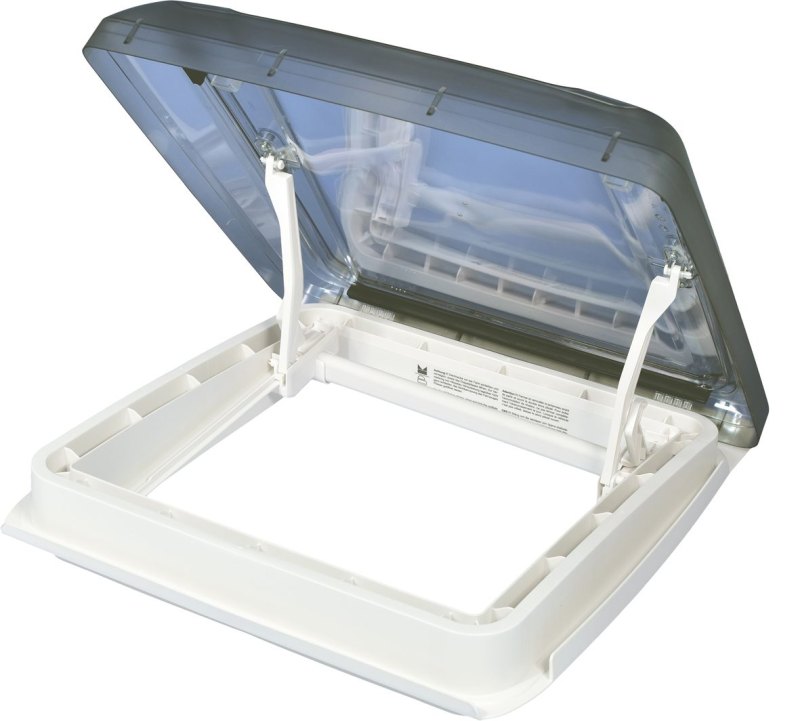

MPK Vision Star M Pro 2 LED with Ventilation (400 x 400 mm) - Model 49PL

This roof light has tinted glass/double glazed dome with permanent ventilation.  The interior frame has a pleated blind and net.

Other features include:-

  • Improved opening mechanism
  • Variable opening up to 50 degrees
  • Very flat glazing dome (only 80 mm)
  • Improved noise reduction
  • Insulated frame for enhanced insulation
  • Permanent ventilation even when blind is closed
  • Strong UV-filter because of tinted glazing dome
  • Robust domes from Polycarbonate
  • Roof thickness up to : 25-60 mm
  • Interior frame with pleated blind and net
  • Efficient LED-lighting
  • Powerful LED, warm white
  • Opal glass for good light diffusion
  • Dimmable LEDs (dimmer BD1209)

THIS PRODUCT IS SUPPLIED BOXED.

For standard non-LED/non vented version see SKU: 30264

For vented version non-LED see SKU: 30273

For Ducato fitting kit see item 30512

Dimensions : 400 x 400 mm

Corner Radius : 28 mm

Size of Dome : 490 x 470 mm

free airflow: up to 150 cm²

Height over roof : 80 mm

Size of Inner Frame : 565 x 570 x 35 mm

Roof Thickness : up to 25-60 mm

Frame Colour : White

Weight : 38.8 kg

LED Information

Data of fitted LED-light (394 x 9 x 2,5 mm):

Light colour (warm white): ~ 3000K

Energy efficiency class: Nomin.

useful luminous flux: 2 x 390 lm

Voltage: 12 - 14V DC

Consumption: 2 x 4,2 kW/h / 1000 h.

Nominal lifetime: 10.000h

Number of switching cycles: 50.000 (before premature failure)

Warm up time **: < 1sek.

Nominal beam angle: 60° (not suitable for accent lighting)
