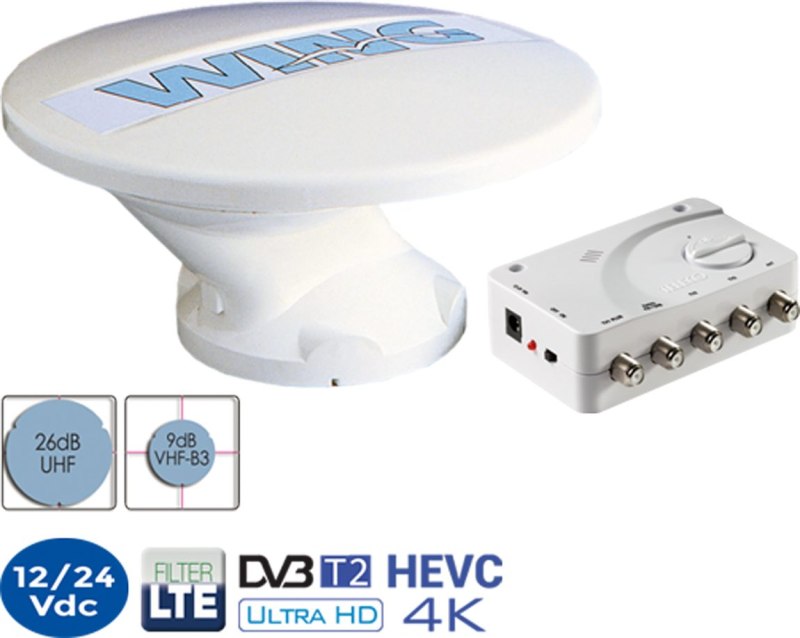

Teleco Wing Digital Terrestrial Antenna
Item: 30614
Teleco Wing Digital Terrestrial Antenna.
The Wing antenna has been designed to receive all digital terrestrial signals. Particular attention was given to creating an ultra-aerodynamic shape to enable it to be installed on the fastest of motorhomes. It is also equipped with a special, ergonomic foot that allows the antenna to be tilted in any direction, thus making it easy to install on even the most streamlined roofs of latest generation motorhomes and caravans.
3-axis rotation for optimal alignment with respect to the roof, thus allowing easy installation also on latest-generation motorhomes and caravans.
Omni-directional antennas 360° 26 dB UHF – 9 dB VHF- B3
MINI antenna (just 31 cm diameter) specially designed to receive UHF channels. A special configuration of the circuit combined with a high gain amplifier enables reception of VHF B3 programmes too.
Equipped with LTE Suppressor Filter to eliminate any disturbance caused by new 4G / 5G Smartphones. (Only for countries that have already incorporated LTE transmissions in the 700 - 800 MHz band).
Gain with amplifier:
CH 5-12 9 dB / CH 21-48 26 dB
Package contents
1 Antenna, complete with 5 m coaxial cable and 3 F connectors
1 Adjustable gain amplifier, with 2 outputs for 3 TV sets + 1 Radio DAB and FM output, operating at 12 and 24 VDC.
Power supply: 12/24 Volts
Diameter: 31 cm
Height: 16.5 cm
Weight: 1 kg
