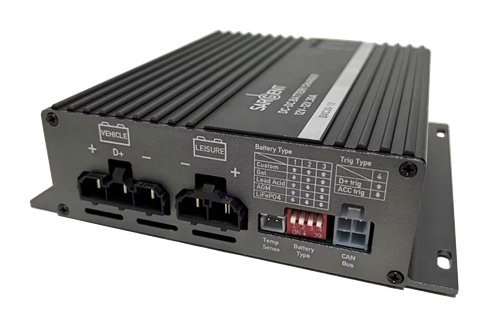

Sargent DC-DC Charger DXC30-12

Sargent DC-DC Charger DXC30-12

Item: 30198

MPN: DXC30-12

Sargent DC-DC Charger DXC30-12

pdf Datasheet

available Available

Log in to view prices

Product Description

Sargent DC-DC Charger DXC30-12

This DC-DC charger takes power from the vehicle battery and alternator, to provide rapid charging of a leisure battery.
The leisure battery is more fully charged than using traditional relay systems and any voltage losses in cabling are reduced.  An engine running input ensures the charger is compatiable with both smart and standard alternators and selctor switches provide the optimum charging profile for most battery types.

Features include:-

  • Multi-Stage charging - 3-Stage profile maximises charge into the leisure battery
  • Vehicle battery protection - charging is automatically reduced to avoid over-discharge
  • Selectable battery types - optimised for Gel, Lead Acid, AGM, LiFePO4 & Lithium Ion
  • CAN Bus Interface - Communicates charge status with other equipment
  • Temperature compensation (optional) - automatically adjusts charging rate depending on temperature •Quiet operation - from intelligent fan cooling
  • Fully protected - built-in overload, short circuit & over temperature protection

Input Voltage Range -   8-16V

Output Voltage Range - 8 - 16V

Power (max) - 390W

Output Current (max) - 30A

Standby Current -  017mA (max)

Efficiency @12V - 94%

Regulation Method - Buck / Boost

Communicatioin - CAN Bus

Engine run(D+) Input - Yes

Dimensions - 147 x 118 x 41 mm (L x W x H)

Weight - 0.46 kg
