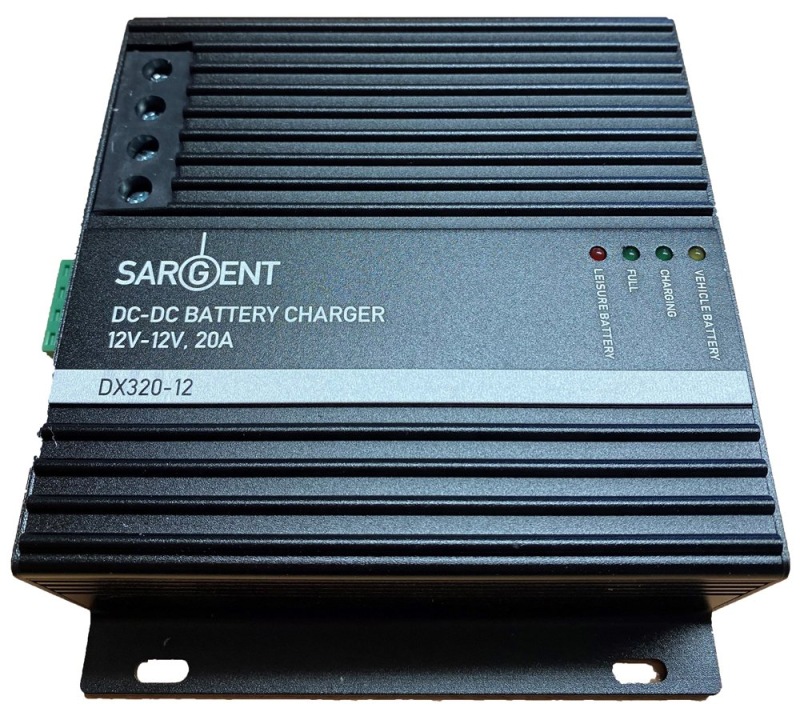

Sargent DC-DC Charger DX320-12

Sargent DC-DC Charger DX320-12

Item: 30297

MPN: DX320-12

Sargent DC-DC Charger DX320-12

pdf Datasheet

available Available

Log in to view prices

Product Description

This DC-DC charger takes power from the vehicle battery and alternator, to provide rapid multi-stage charging of a leisure battery.  The battery is more fully charged than using traditional relay systems and any voltage losses in cabling are reduced.  An engine running input ensures the charger is compaitble with both smart and standard alternators and selector switches provide the optimum charging profile for most battery types.

Features include:-

Multi-stage charging - e stage profile maximises charge into the leisure battery.

Vehicle battery protection - charging is automatically reduced to avoid over-discharge

Selectable battery types - compaitable with Gel. ead Acid. AGM. LiFePO4 & Lithium Ion

Charging Indicators - clearly displayed charging status

Temperature compensation (optional) - automatically adjusts chargin grate depending on temperature

Quiet Operation - from intelligent fan cooling

Fully protected - built-in overload, short circuit & over temperature protection


Power : 260 W

Input Voltage range : 10.5 - 15.4 V

Output Voltage range : 8 - 16 V

Output Current : 20A (Max)

Standby Current : 17mA (Max)

Regulation Method : Buck/Boost

Efficiency @ 12V : 94%

Engin runs (D+) Input : Yes

Dimensions (L x W x H) : 147 x 118 x 41 mm

Weight : 460 g
