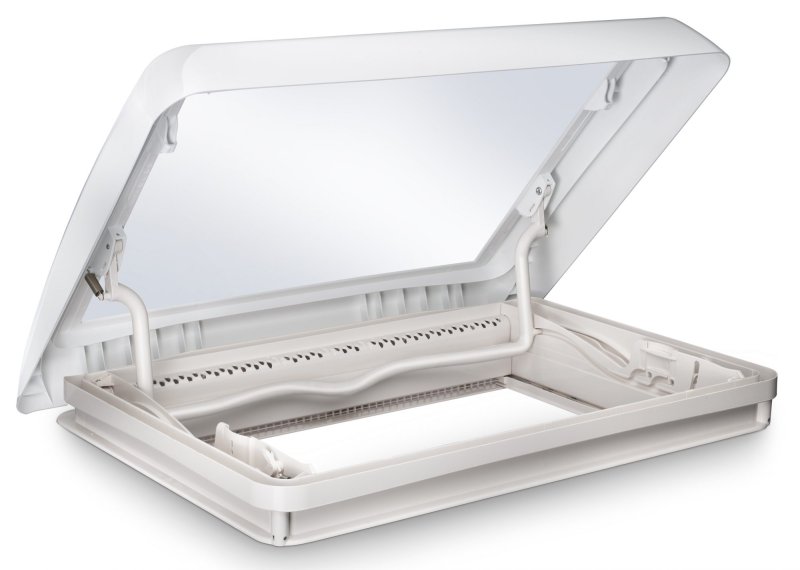

Dometic Midi HEKI Style Roof Vent (700 x 500)
Item: 30372
Dometic Midi HEKI Style Roof Vent (700 x 500) with or without forced ventilation
Product Description
Roof window with lever, white, with or without forced ventilation, 700 x 500 mm
Open up your vehicle to fresh air and light! This upgraded version of the Midi Heki Style roof light has improved safety features, aerodynamics, appearance and maintenance. With well-proven benefits such as the darkening blind and fly screen, as well as hassle-free cleaning, it ensures comfort and convenience while you're on the road.
- Separately adjustable darkening and fly screens
- Well insulated dome with double acrylic glazing
- Improved aerodynamics reduce by 20 %
- Hinge and lock integrated into frame for improved safety and mechanical reliability
- Opens to three positions: fully open, half-open and bad-weather position
- With or without forced ventilation
- Modern design for stylish interior and exterior appearance
Technical Information
Dimensions:
Dimensions product depth 617 mm
Dimensions product height 617 mm
Dimensions product width : 846 mm
Dimensions ordered width : 700 mm
Dimensions ordered height : 500 mm
Net weight : 8.40 kg
Dimensions opening width : 585 mm
Dimensions opening height : 404 mm
Standard mount. material thickness 1 min 30 mm
Standard mount. material thickness 1 max 34 mm
Possible material thickness 1 min 25 mm
Possible material thickness 1 max 29 mm
Cut out height : 500 mm
Cut out width : 700 mm
Additional:
Opening angle max 45.00 °
Positions fixed 3
Certificates eMark
