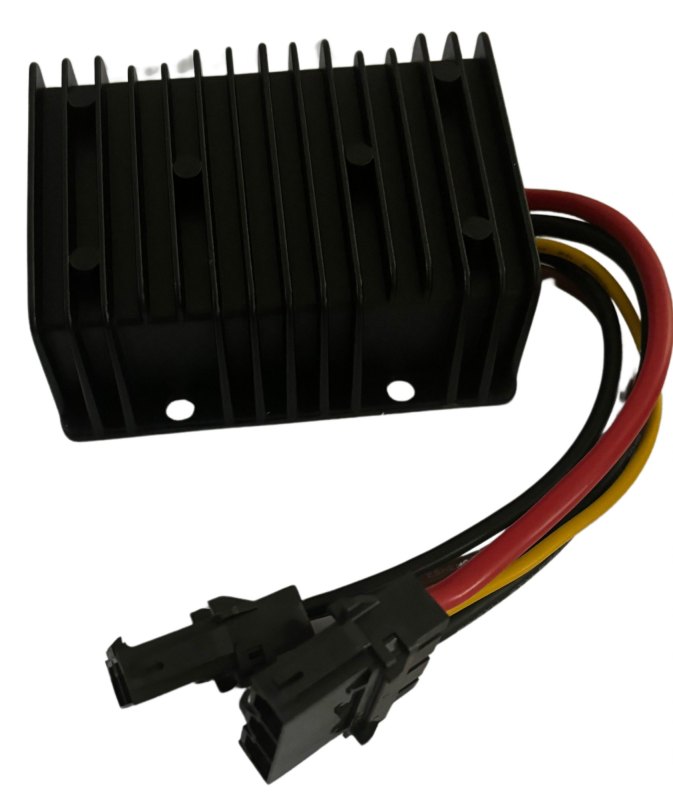

Sargent DC-DC Battery Charger DX20-12

New
Sargent DC-DC Battery Charger DX20-12

Item: 30199

MPN: DX20-12

Sargent DC-DC Battery Charger DX20-12

pdf Datasheet

available Available

Log in to view prices

Product Description

Sargent DC-DC Battery Charger DX20-12

This DC-DC charger takes power from the vehicle battery and alternator, to provide rapid charging of a leisure battery.
The leisure battery is more fully charged than using traditional relay systems and any voltage losses in cabling are reduced.



Input Voltage Range -   8-36V

Battery Capacity-   30-180Ah

Output voltage (boost) - 14.2V

Power (max) - 284W

Current (max) - 20A

Standby Current -  0mA (D+ off)
                                130mA (D+ on)

Weight - 0.5kg

Dimensions - 78 x 100 x 39 mm (wxdxh)
