MPK Vision Star M Pro 2 LED with Ventilation - Model 49PL (400 x 400 mm)
Please select option to view code
MPN: 4903PW4903PLW150MSB
MPK Vision Star M Pro 2 LED with Ventilation - Model 49PL (400 x 400 mm)
Available
Log in to view prices
Product Description

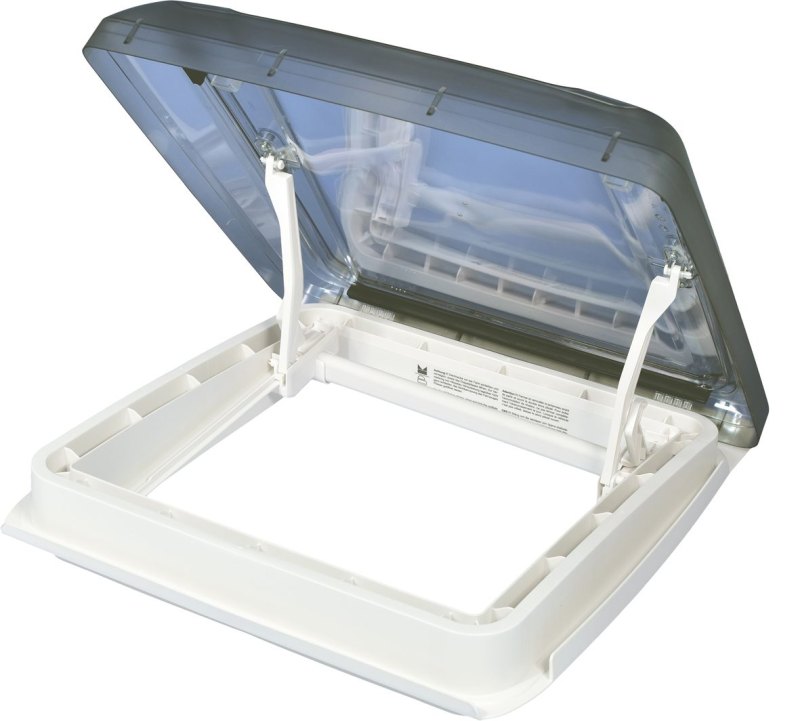

MPK Vision Star M Pro 2 LED with Ventilation (400 x 400 mm) - Model 49PL
This roof light has tinted glass/double glazed dome with permanent ventilation. The interior frame has a pleated blind and net.
Other features include:-
- Improved opening mechanism
- Variable opening up to 50 degrees
- Very flat glazing dome (only 80 mm)
- Improved noise reduction
- Insulated frame for enhanced insulation
- Permanent ventilation even when blind is closed
- Strong UV-filter because of tinted glazing dome
- Robust domes from Polycarbonate
- Roof thickness up to : 25-60 mm
- Interior frame with pleated blind and net
- Efficient LED-lighting
- Powerful LED, warm white
- Opal glass for good light diffusion
- Dimmable LEDs (dimmer BD1209)
THIS PRODUCT IS SUPPLIED BOXED.
For standard non-LED/non vented version see SKU: 30264
For vented version non-LED see SKU: 30273
For Ducato fitting kit see item 30512
Dimensions : 400 x 400 mm
Corner Radius : 28 mm
Size of Dome : 490 x 470 mm
free airflow: up to 150 cm²
Height over roof : 80 mm
Size of Inner Frame : 565 x 570 x 35 mm
Roof Thickness : up to 25-60 mm
Frame Colour : White
Weight : 38.8 kg
LED Information
Data of fitted LED-light (394 x 9 x 2,5 mm):
Light colour (warm white): ~ 3000K
Energy efficiency class: Nomin.
useful luminous flux: 2 x 390 lm
Voltage: 12 - 14V DC
Consumption: 2 x 4,2 kW/h / 1000 h.
Nominal lifetime: 10.000h
Number of switching cycles: 50.000 (before premature failure)
Warm up time **: < 1sek.
Nominal beam angle: 60° (not suitable for accent lighting)
